[Excel export] Cannot merge already merged cells

Hi Leo,

Most likely, it‘s related to the row headers (number of columns, column titles…). You can also try posting the error stack trace.

Hi Dan,

Apologies for the late reply - I was trying to find out exactly when this happens. I seem to have the issue in the Gantt only when I have scale = “Week” set.

I set:

gantt.scale = 'Week';
gantt.cellWidth = 100;
gantt.useEventBoxes = 'Never';
gantt.cellDuration = 1440;
gantt.cellGroupBy = “Month“;
gantt.cellWidth = 100;
gantt.cellWidthSpec = “Fixed“;

And have two headers:

• A month header (level 0, groupBy = “Month“)

• A week header (level 1, groupBy = “Week“)


The call stack is:

at exceljs.js?v=3f5eaafe:2040:44
at exceljs.js?v=3f5eaafe:2612:13
at Array.forEach (<anonymous>)
at Object.each (exceljs.js?v=3f5eaafe:2611:71)
at t.exports._mergeCellsInternal (exceljs.js?v=3f5eaafe:2039:15)
at t.exports.mergeCells (exceljs.js?v=3f5eaafe:2031:18)
at o3.setColspan (daypilot-pro-javascript.js?v=3f5eaafe:2144:37)
at daypilot-pro-javascript.js?v=3f5eaafe:15922:326
at Array.forEach (<anonymous>)
at daypilot-pro-javascript.js?v=3f5eaafe:15916:30

Hi Leo,

Does it happen when you use this instead?

useEventBoxes: 'Always'

This is necessary because the events need to be aligned with the grid during Excel export.

Hi Dan,

yes, it happens with “Always” as well.

FYI, I have other Gantt charts where useEventBoxes is set to “Never” and the issue doesn’t arise there…

Thanks.

1. The latest sandbox build (2025.3.6635) includes a fix for export with area: "viewport" option. If that is your case, you can give it a try.

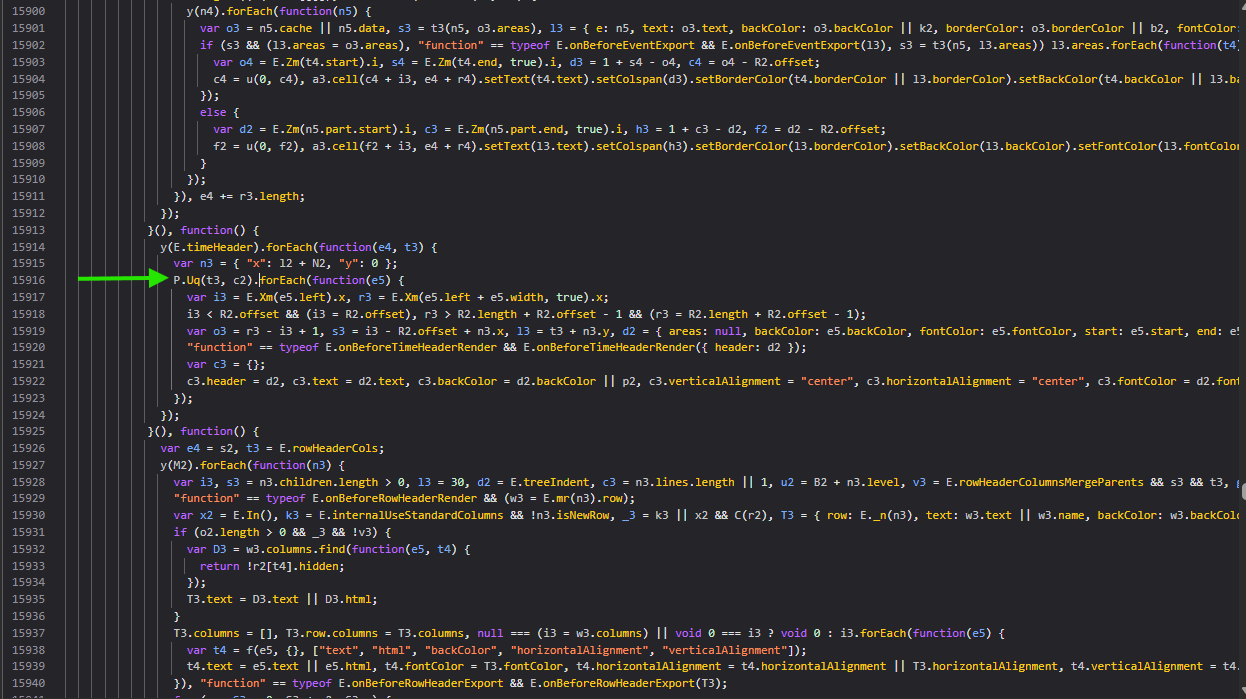

2. Could you please post a screenshot of the code location marked as the source in the stack trace (“at daypilot-pro-javascript.js?v=3f5eaafe:15916:30”)?

Hi Dan,

We use area: "full" .

Here’s the screenshot:

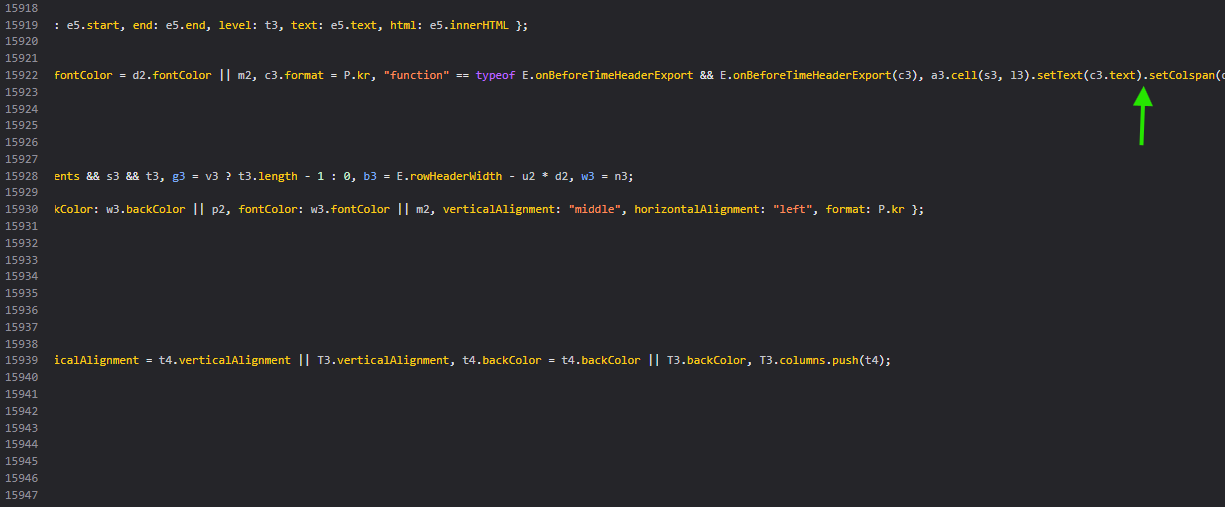

… and just in case, also for daypilot-pro-javascript.js?v=f9e91228:15922:326

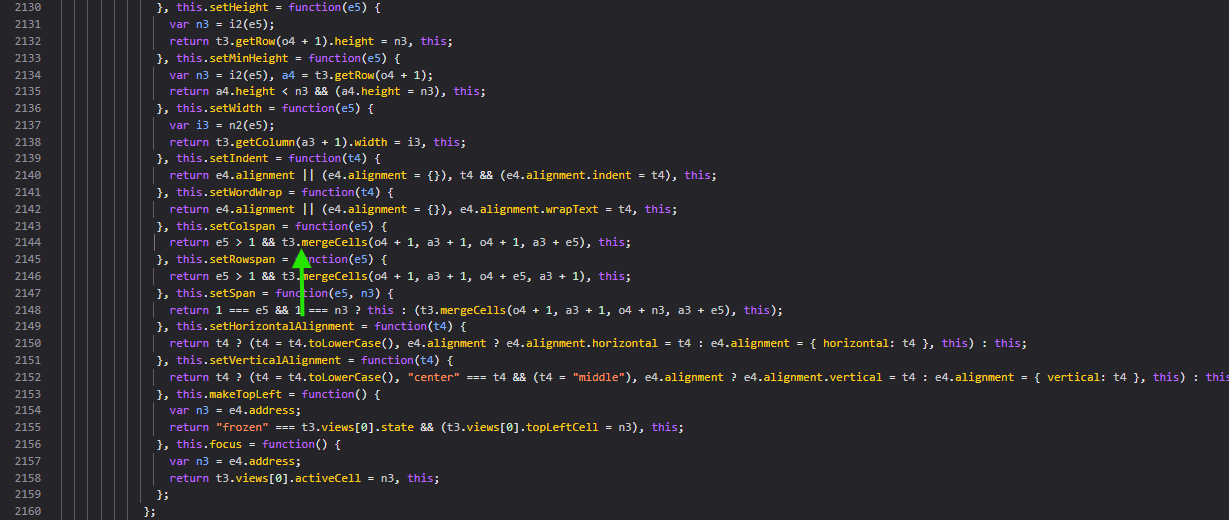

… and o3.setColspan
