15 and 20 minute events don't show up correctly on workweek view

Asked by Carlos Guevara
8 days ago.

I am trying to use the daypilot light for mvc control and it appears to do 99% of what I need. However I do have to schedule events in the workweek view that only last 15 or 20 minutes. If I add three 20 minute appointments, they are added three to the two rows, one for each row and one that fills both rows but on the right of the first three.

I’ve followed some instructions that said there were properties I could use to make the rows larger so that they would fit better but none seem to work. Is there anyway to do this?

Thanks

Comment posted by Dan Letecky [DayPilot]
8 days ago.

Could you please post a screenshot that shows the problem?

Comment posted by Carlos Guevara
8 days ago.

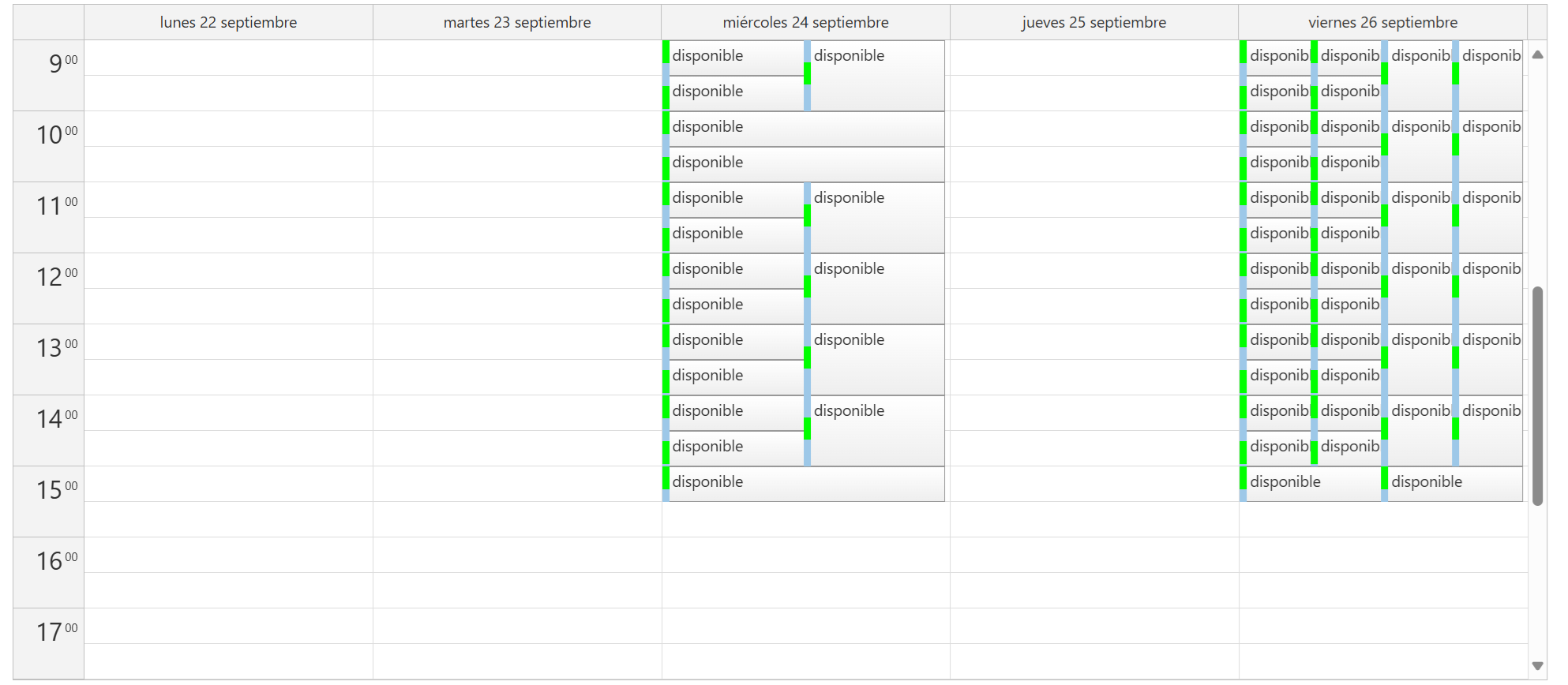

Sure, here goes. It places the H:00 event and the H:40 event on the left, and the H:20, meaning the hour and 20 minutes spot on the right and it takes upt both rows.

Comment posted by Carlos Guevara
8 days ago.

This is the script code I am using:

const calendar = new DayPilot.Calendar("dp", {
  viewType: "WorkWeek",
  StartDate: document.getElementById("WeekStart").value,
  headerDateFormat: "dddd dd MMMM",
  locale: "es-es",
  CellDuration: 20,
  CellHeight: 100,
  onEventClick(args) {
    window.location.href = `/Agenda/Details/${args.e.id()}`;
  },
});
Answer posted by Dan Letecky [DayPilot]
8 days ago.

Thanks.

This happens because the calendar uses event boxes by default. In the JavaScript version, you can turn it off using useEventBoxes: "Never".

BTW, it looks like some of your property names are incorrect. They all start with a lowercase letter, i.e. StartDate should be startDate.

Comment posted by Carlos Guevara
8 days ago.

Thanks, I will try as you suggest

I do appreciate you help very much. I owe you a beer or a plate of wings!

Comment posted by Carlos Guevara
8 days ago.

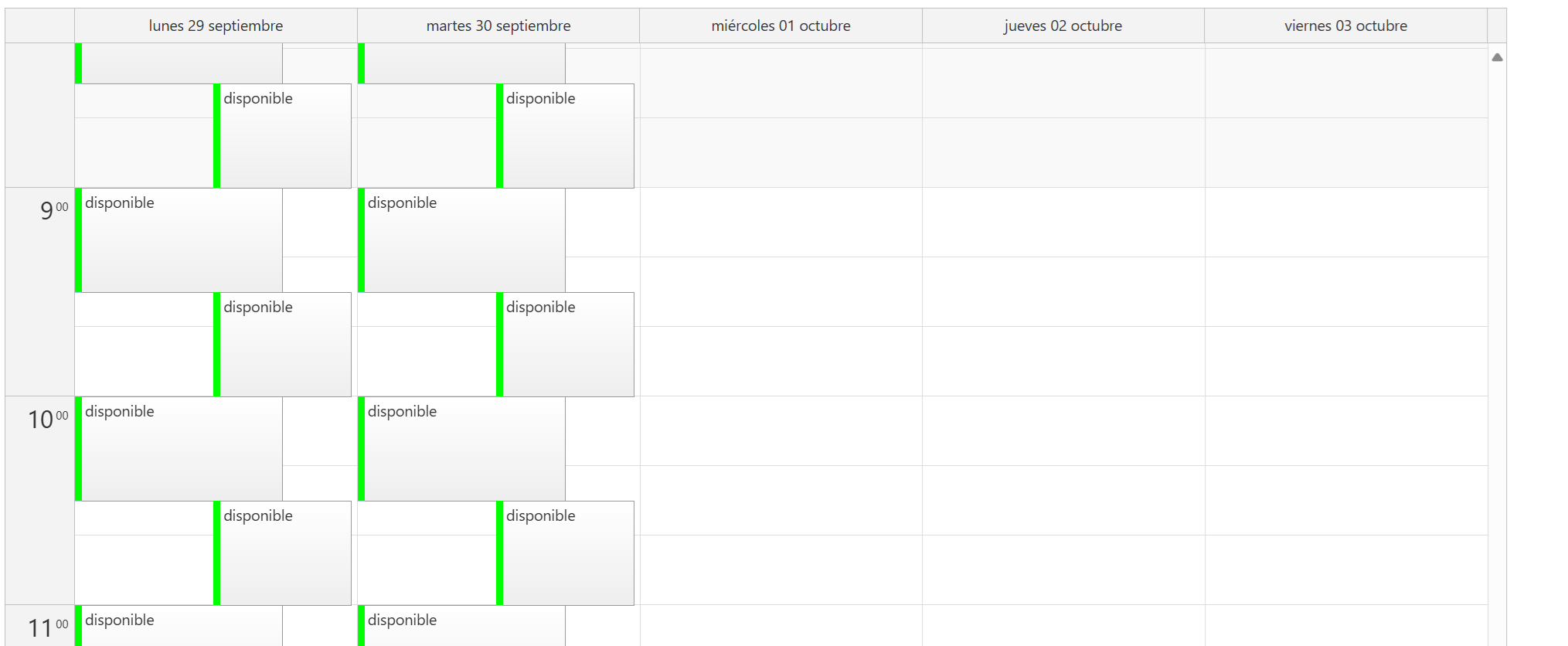

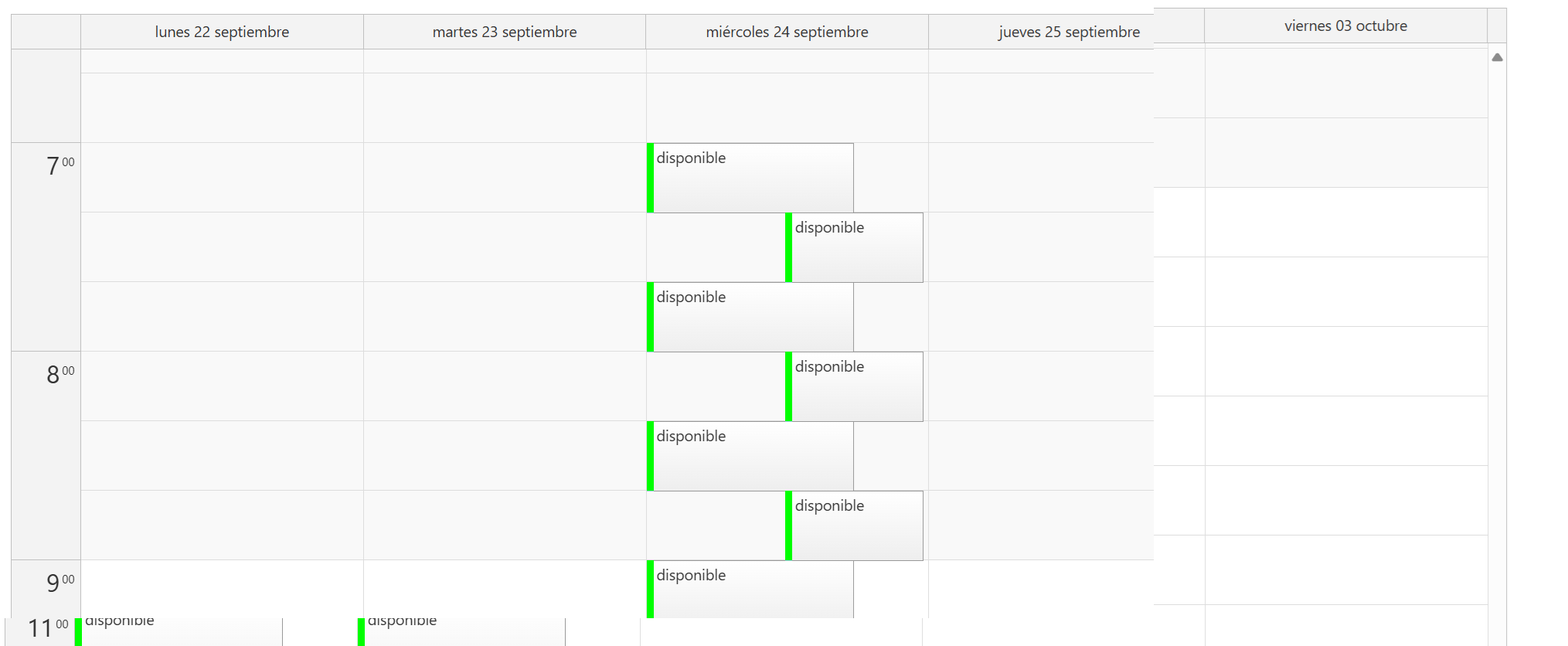

Much better. Just one thing I need to ask. When I use this, as in the last two images I added, it kind of alternates the begining of each appointment between left and right sides. It is much better than before, but I would prefer for them to line up. Is there anything that can be done?

This is my current script

const calendar = new DayPilot.Calendar("dp", {

viewType: "WorkWeek",

startDate: document.getElementById("WeekStart").value,

headerDateFormat: "dddd dd MMMM",

locale: "es-es",

cellDuration: 20,

cellHeight: 60,

useEventBoxes: "Never",

onEventClick: function(args) {

window.location.href = `/Agenda/Details/${args.e.id()}`;

}

});

calendar.init();

Thanks in advance.

Comment posted by Carlos Guevara
8 days ago.

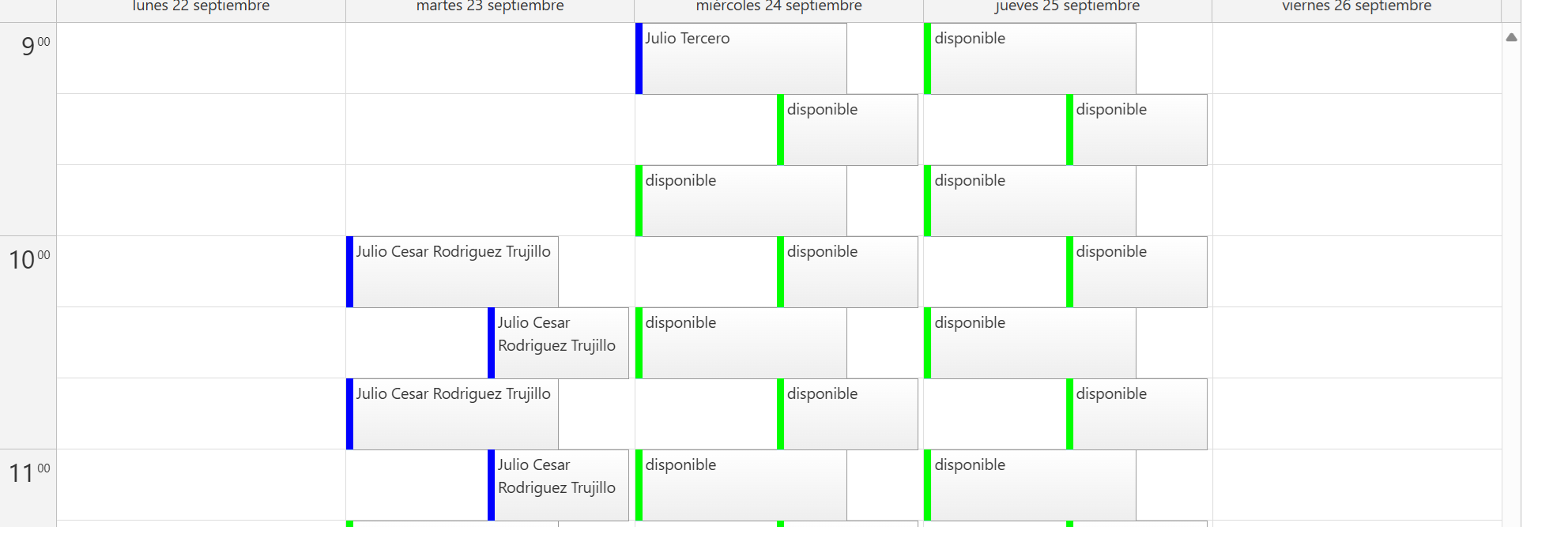

One more look

Comment posted by Dan Letecky [DayPilot]
8 days ago.

Can you post a sample of the event data, please?

Comment posted by Dan Letecky [DayPilot]
8 days ago.

I confirm the problem, with useEventBoxes: "Never" it incorrectly evaluates the events as overlapping. It will be fixed shortly.

Comment posted by Carlos Guevara
8 days ago.

Thanks Dan. This is a sample of the dataset

[{"id":1006,"start":"2025-09-23T10:00:00","end":"2025-09-23T10:20:00","text":"Julio Cesar Rodriguez Trujillo","color":null,"backColor":null,"barColor":"#0000FF"},{"id":1007,"start":"2025-09-23T10:20:00","end":"2025-09-23T10:40:00","text":"Julio Cesar Rodriguez Trujillo","color":null,"backColor":null,"barColor":"#0000FF"}

Comment posted by Carlos Guevara
7 days ago.

Thanks to your suggestion, for now I have reduced the length of the appointments by one minute and it looks great now. Thanks.

Comment posted by Dan Letecky [DayPilot]
7 days ago.

Thanks for the update.

The problem should be fixed now in the latest sandbox build (2025.3.736).

Please let me know if the problem persists.

Comment posted by Dan Letecky [DayPilot]
7 days ago.

@kekec14: Your Scheduler question has been moved to Events incorrectly overlapping in Scheduler.
