Scheduler - How to set row header columns to a very compact width

By default, the Scheduler only extends the width automatically (to fit the text). If you want to show narrower columns, you can either enable shrinking (rowHeaderWidthAutoFitShrink) or set a smaller default column width (rowHeaderColumnDefaultWidth).

See also:
https://doc.daypilot.org/scheduler/row-header-width-auto-fit/

If I set rowHeaderWidthAutoFitShrinkto to true, the row headers disappear completely.

This is caused by the option rowHeaderScrolling set to true. If I remove it, the row header columns don't disappear. However, the columns width is still the same and not that compact.

rowHeaderScrolling: true,
rowHeaderWidthAutoFitShrink: true,
rowHeaderWidthAutoFit: true,

There turned out to be a problem with shrinking. It should be fixed now in the latest sandbox build (2023.1.5532). It should also work fine with "rowHeaderScrolling: true".

Please let me know if the problem persists.

Thanks. This solved the problem.

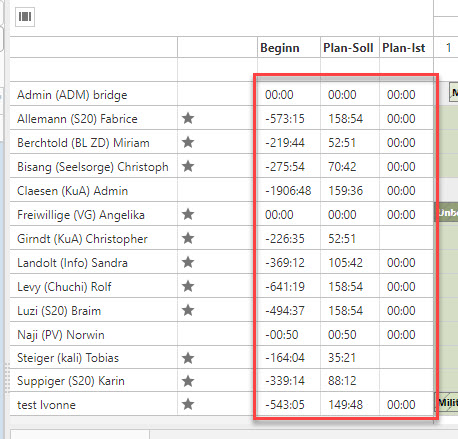

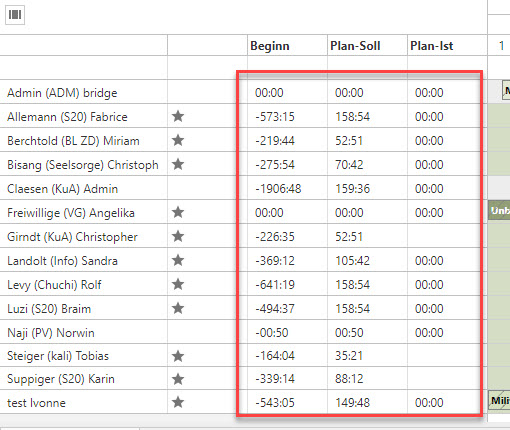

However, there are two other issues with wrapping the columns caption and with active areas. Please check the attached video.

At this moment, the column width auto-fit doesn't take the column titles and the active areas into account.

However, you should be able to use the "width" property of a column to set a minimum width (reflecting the title and/or active areas - they are known in advance). If you turn the shrinking off, this value will be used as the starting value when extending the width:

rowHeaderColumns: [
  { text: "Column1 ", width: 60 },
  // ...
},
rowHeaderWidthAutoFit: true,
rowHeaderWidthAutoFitShrink: false,
